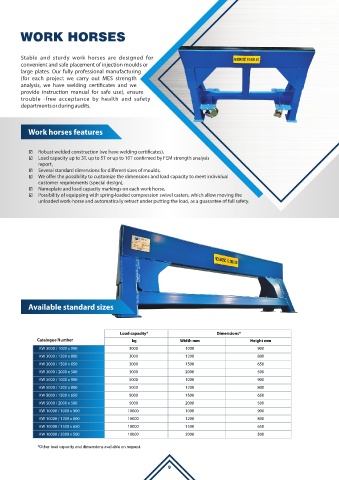

WORK HORSES

Stable and sturdy work horses are designed for
convenient and safe placement of injection moulds or
large plates. Our fully professional manufacturing
(for each project we carry out MES strength
analysis, we have welding certi cates and we
provide instruction manual for safe use), ensure
trouble -free acceptance by health and safety
departments or during audits.

Work horses features

ţ Robust welded construction (we have welding certi cates),
ţ Load capacity up to 3T, up to 5T or up to 10T con rmed by FEM strength analysis
report,
ţ Several standard dimensions for different sizes of moulds,
ţ We offer the possibility to customize the dimensions and load capacity to meet individual
customer requirements (special design),
ţ Nameplate and load capacity markings on each work horse,
ţ Possibility of equipping with spring-loaded compression swivel casters, which allow moving the
unloaded work-horse and automatically retract under putting the load, as a guarantee of full safety.

Available standard sizes

Load capacity* Dimensions*
Catalogue Number kg Width mm Height mm
KW 3000 / 1000 x 900 3000 1000 900
KW 3000 / 1200 x 800 3000 1200 800
KW 3000 / 1500 x 650 3000 1500 650
KW 3000 / 2000 x 500 3000 2000 500
KW 5000 / 1000 x 900 5000 1000 900
KW 5000 / 1200 x 800 5000 1200 800
KW 5000 / 1500 x 650 5000 1500 650
KW 5000 / 2000 x 500 5000 2000 500
KW 10000 / 1000 x 900 10000 1000 900
KW 10000 / 1200 x 800 10000 1200 800
KW 10000 / 1500 x 650 10000 1500 650
KW 10000 / 2000 x 500 10000 2000 500

*Other load capacity and dimensions available on request.

9
