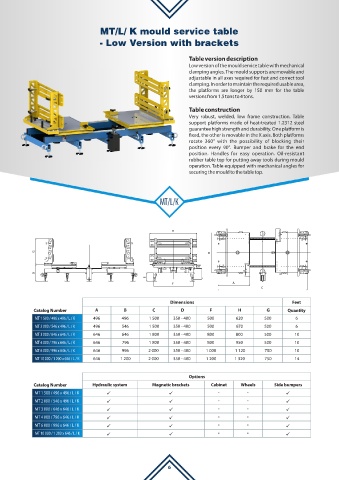

MT/L/ K mould service table
- Low Version with brackets

Table version description
Low version of the mould service table with mechanical
clamping angles. The mould supports are movable and
adjustable in all axes required for fast and correct tool
clamping. In order to maintain the required usable area,
the platforms are longer by 150 mm for the table
versions from 1.5 tons to 4 tons.

Table construction
Very robust, welded, low frame construction. Table
support platforms made of heat-treated 1.2312 steel
guarantee high strength and durability. One platform is
xed, the other is movable in the X axis. Both platforms
rotate 360° with the possibility of blocking their
position every 90°. Bumper and brake for the end
position. Handles for easy operation. Oil-resistant
rubber table top for putting away tools during mould
operation. Table equipped with mechanical angles for
securing the mould to the table top.

MT/L/K

H

G
B

D
E
F A
C

Dimensions Feet
Catalog Number A B C D F H G Quantity
MT 1 500 / 496 x 496 / L / K 496 496 1 500 350 - 400 500 620 500 6
MT 2 000 / 546 x 496 / L / K 496 546 1 500 350 - 400 500 670 500 6
MT 3 000 / 646 x 646 / L / K 646 646 1 800 350 - 400 800 800 500 10
MT 4 000 / 796 x 646 / L / K 646 796 1 800 350 - 400 800 950 500 10
MT 6 000 / 996 x 646 / L / K 646 996 2 000 350 - 400 1 000 1 120 750 10
MT 10 000 / 1 200 x 646 / L / K 646 1 200 2 000 350 - 400 1 200 1 320 750 14

Options
Catalog Number Hydraulic system Magnetic brackets Cabinet Wheels Side bumpers
MT 1 500 / 496 x 496 / L / K ü ü ü
MT 2 000 / 546 x 496 / L / K ü ü ü
MT 3 000 / 646 x 646 / L / K ü ü ü
MT 4 000 / 796 x 646 / L / K ü ü ü
MT 6 000 / 996 x 646 / L / K ü ü ü
MT 10 000 / 1 200 x 646 / L / K ü ü ü

6
