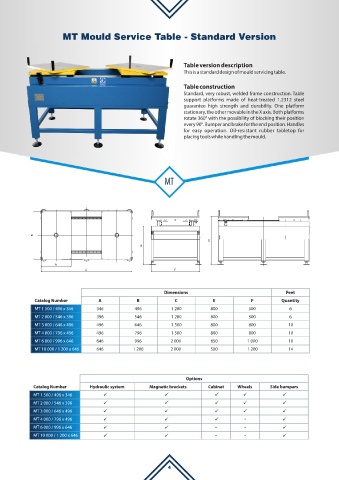

MT Mould Service Table - Standard Version

Table version description
This is a standard design of mould servicing table.

Table construction
Standard, very robust, welded frame construction. Table
support platforms made of heat-treated 1.2312 steel
guarantee high strength and durability. One platform
stationary, the other movable in the X axis. Both platforms
rotate 360° with the possibility of blocking their position
every 90°. Bumper and brake for the end position. Handles
for easy operation. Oil-resistant rubber tabletop for
placing tools while handling the mould.

MT

B
D
E

A
C F

Dimensions Feet
Catalog Number A B C E F Quantity
MT 1 500 / 496 x 346 346 496 1 200 800 500 6
MT 2 000 / 546 x 396 396 546 1 200 800 500 6
MT 3 000 / 646 x 496 496 646 1 500 800 800 10
MT 4 000 / 796 x 496 496 796 1 500 800 800 10
MT 6 000 / 996 x 646 646 996 2 000 650 1 000 10
MT 10 000 / 1 200 x 646 646 1 200 2 000 500 1 200 14

Options
Catalog Number Hydraulic system Magnetic brackets Cabinet Wheels Side bumpers
MT 1 500 / 496 x 346 ü ü ü ü ü
MT 2 000 / 546 x 396 ü ü ü ü ü
MT 3 000 / 646 x 496 ü ü ü ü ü
MT 4 000 / 796 x 496 ü ü ü ü
MT 6 000 / 996 x 646 ü ü ü
MT 10 000 / 1 200 x 646 ü ü ü
