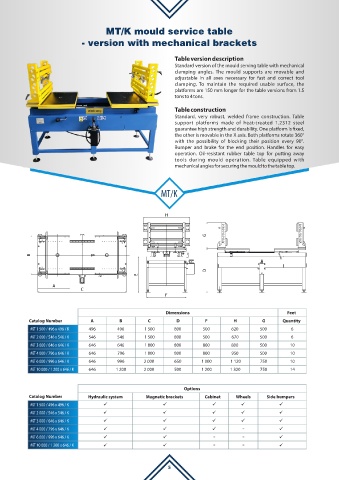

MT/K mould service table
- version with mechanical brackets

Table version description
Standard version of the mould serving table with mechanical
clamping angles. The mould supports are movable and
adjustable in all axes necessary for fast and correct tool
clamping. To maintain the required usable surface, the
platforms are 150 mm longer for the table versions from 1.5
tons to 4 tons.

Table construction
Standard, very robust, welded frame construction. Table
support platforms made of heat-treated 1.2312 steel
guarantee high strength and durability. One platform is xed,
the other is movable in the X axis. Both platforms rotate 360°
with the possibility of blocking their position every 90°.
Bumper and brake for the end position. Handles for easy
operation. Oil-resistant rubber table top for putting away
tools during mould operation. Table equipped with
mechanical angles for securing the mould to the table top.

MT/K

H

G

B

D
E
A
C
F

Dimensions Feet
Catalog Number A B C D F H G Quantity
MT 1 500 / 496 x 496 / K 496 496 1 500 800 500 620 500 6
MT 2 000 / 546 x 546 / K 546 546 1 500 800 500 670 500 6
MT 3 000 / 646 x 646 / K 646 646 1 800 800 800 800 500 10
MT 4 000 / 796 x 646 / K 646 796 1 800 800 800 950 500 10
MT 6 000 / 996 x 646 / K 646 996 2 000 650 1 000 1 120 750 10
MT 10 000 / 1 200 x 646 / K 646 1 200 2 000 500 1 200 1 320 750 14

Options
Catalog Number Hydraulic system Magnetic brackets Cabinet Wheels Side bumpers
MT 1 500 / 496 x 496 / K ü ü ü ü ü
MT 2 000 / 546 x 546 / K ü ü ü ü ü
MT 3 000 / 646 x 646 / K ü ü ü ü ü
MT 4 000 / 796 x 646 / K ü ü ü ü
MT 6 000 / 996 x 646 / K ü ü ü
MT 10 000 / 1 200 x 646 / K ü ü ü
