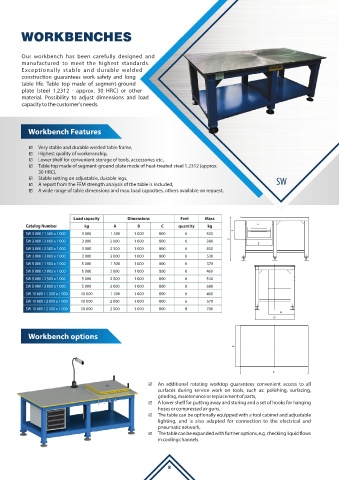

WORKBENCHES

Our workbench has been carefully designed and
manufactured to meet the highest standards.
Exceptionally stable and durable welded
construction guarantees work safety and long
table life. Table top made of segment-ground
plate (steel 1.2312 - approx. 30 HRC) or other
material. Possibility to adjust dimensions and load
capacity to the customer's needs.

Workbench Features

ţ Very stable and durable welded table frame,
ţ Highest quality of workmanship,
ţ Lower shelf for convenient storage of tools, accessories etc.,
ţ Table top made of segment-ground plate made of heat-treated steel 1.2312 (approx.
30 HRC),
ţ Stable setting on adjustable, durable legs, SW
ţ A report from the FEM strength analysis of the table is included,
ţ A wide range of table dimensions and max. load capacities, others available on request.

Load capacity Dimensions Feet Mass
Catalog Number kg A B C quantity kg
F
SW 3 000 / 1 500 x 1 000 3 000 1 500 1 000 800 6 300
C
SW 3 000 / 2 000 x 1 000 3 000 2 000 1 000 800 6 380
E
SW 3 000 / 2 500 x 1 000 3 000 2 500 1 000 800 6 450
SW 3 000 / 3 000 x 1 000 3 000 3 000 1 000 800 6 530
SW 5 000 / 1 500 x 1 000 5 000 1 500 1 000 800 6 370
SW 5 000 / 2 000 x 1 000 5 000 2 000 1 000 800 6 460
SW 5 000 / 2 500 x 1 000 5 000 2 500 1 000 800 6 540
SW 5 000 / 3 000 x 1 000 5 000 3 000 1 000 800 8 660
SW 10 000 / 1 500 x 1 000 10 000 1 500 1 000 800 6 460
SW 10 000 / 2 000 x 1 000 10 000 2 000 1 000 800 6 570
SW 10 000 / 2 500 x 1 000 10 000 2 500 1 000 800 8 700
G
D

Workbench options

B

A

ţ An additional rotating worktop guarantees convenient access to all
surfaces during service work on tools, such as: polishing, surfacing,
grinding, maintenance or replacement of parts,
ţ A lower shelf for putting away and storing and a set of hooks for hanging
hoses or compressed air guns,
ţ The table can be optionally equipped with a tool cabinet and adjustable
lighting, and is also adapted for connection to the electrical and
pneumatic network,
ţ The table can be expanded with further options, e.g. checking liquid ows
in cooling channels.
